| Product Name: | Fiber Optic Connector | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | ST/UPC | Insertion Loss: | SM≤0.20 DB,MM≤0.25 DB |
| Return Loss: | PC≥50dB,UPC≥55dB,APC≥65dB | Operating Temperature: | -40 To +85 Degree |
| Highlight: | plastic fiber optic cable connectors,terminate fiber lc connector |
||

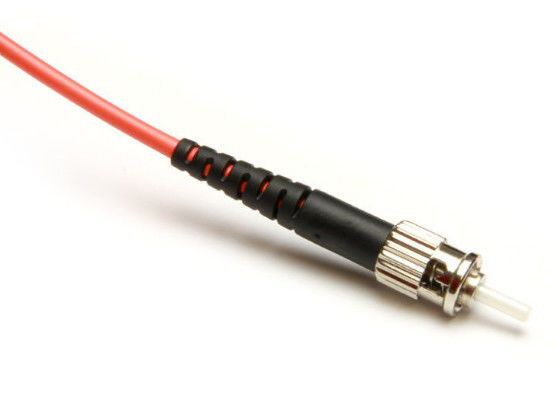

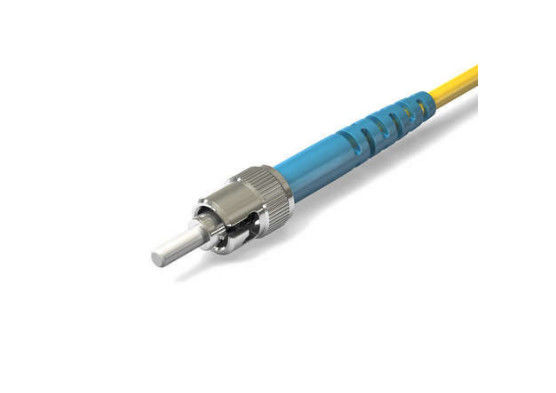

0.9mm / 2.0mm / 3.0mm ST / upc singlemode simplex fiber optic connector
Features
Applications
Specifications
| Insertion loss | SM | ≤0.20 dB |
| MM | ≤0.25dB | |
| Return loss | PC | ≥50 dB |
| UPC | ≥55 dB | |
| APC | ≥65dB | |
| Durability | <0.20 dB typical change, 1000 mating | |
| Ferrule hole sizes |
SM: 125.0+1/-0um | concentricity:≤1.0um |
| 125.5+1/-0um | ≤1.0um | |
| 126.0+1/-0um | ≤1.0um | |
| MM:125 um | concentricity:1≤3 um | |
| 127 um | ≤3 um | |
| 128 um | ≤3 um | |
| Operating temperature | -40~85 | |
